Basic Item＃ GTL-R50CF-T23
Material: Toray T700 Carbon Fiber
Rim Type：Tubular
Warranty：2 Years
Dimension Size：700C Hole Count:16-36H
ERD：544mm Spoke Hole Dia.：4.5mm
Width：23mm Valve Hole Dia.：6.5mm
Depth：50mm Assembly Hole Dia.：7.5mm
Weight：380±15g
Recommendation Spoke Nipple Length：14mm/16mm
Max Tire Pressure：145PSI
Max Spoke Tension：130kgf
Weight Limit：110kg
Appearance Weave：UD / 3K/12K
Finish：Matte / Glossy
Application Road / Triathlon / TT / Cyclocross

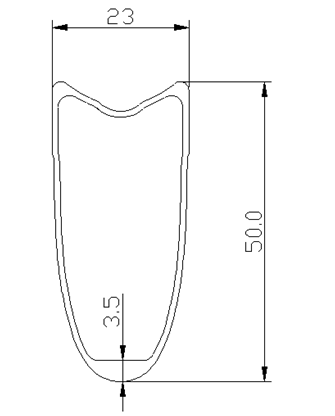

Profile Drawing
Design Features
Basalt Braking Surface：
This rim has a high-temperature resistant basalt braking surface
that dissipates heat build-up and provides consistently solid braking
Tags :700C, tubular, 50mm rim, basalt braking surface, road bike rim
