Basic Item＃ GTL-R38CU-C23
Material: Toray T700 Carbon Fiber
Rim Type：Clincher
Warranty：2 Years
Dimension Size：700C Hole Count:16-36H
ERD：566mm Spoke Hole Dia.：4.5mm
Width：23mm Valve Hole Dia.：6.5mm
Depth：38mm Assembly Hole Dia.：7.5mm
Weight：435±15g
Recommendation Spoke Nipple Length：14mm
Max Tire Pressure：140PSI
Max Spoke Tension：130kgf
Weight Limit：100kg
Appearance Weave：UD / 3K/12K
Finish：Matte / Glossy
Application Road / Triathlon / TT / Cyclocross

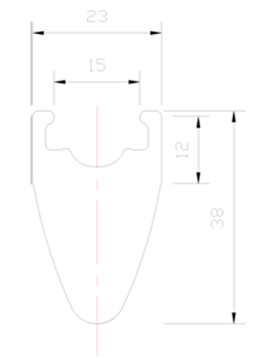

Profile Drawing
Design Features

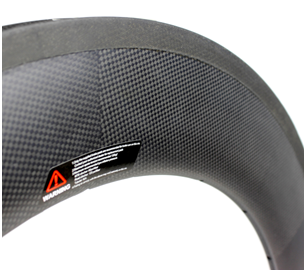

Basalt Braking Surface：
This rim has a high-temperature resistant basalt braking surface
that dissipates heat build-up and provides consistently solid braking
Tags :wide clincher, wide rim,tubeless, carbon road bike, 700C, 38mm
